Farm implementation architecture
One system, drawn the way it is built on your farm

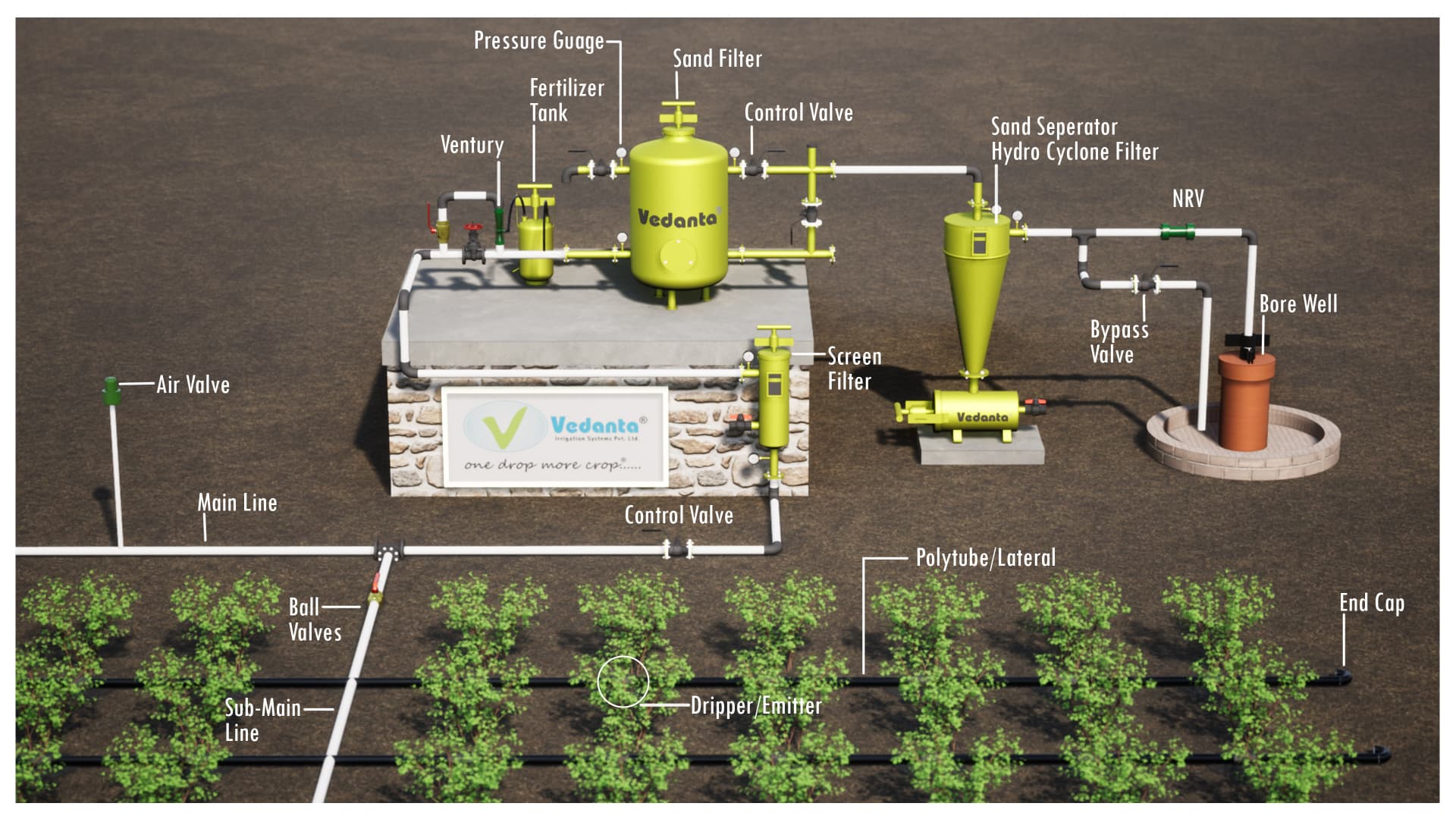

Every Vedanta installation follows the same architecture. Water is lifted from the bore well, cleaned through hydrocyclone, sand and screen filtration, enriched through the venturi and fertiliser tank, then carried by main and sub-main lines into laterals that deliver a measured drop at each plant.
- 01
Source
Bore well with non-return, control and bypass valves at the pump head.
- 02
Filtration
Hydrocyclone, sand filter and screen filter working in series.
- 03
Fertigation
Venturi injector and fertiliser tank tied into the injection line.
- 04
Distribution
Main and sub-main lines with air valves and ball valves for zoning.
- 05
Emission
Laterals, drippers and end caps placing water at every plant.
Browse the range by category
Everything from the water source to the last emitter, manufactured and supplied as one matched system. Pick a category to see specifications, features and field usage.
Filters
The heart of every drip system. Our filtration range removes sand, silt, algae and organic load before it can ever reach an emitter.
4 productsPressure Gauge
Accurate pressure monitoring at every critical node so you know when to flush, when to service and when the system is running right.
2 productsFertigation Equipment
Deliver soluble nutrients directly to the root zone with precise, repeatable injection equipment built for daily fertigation schedules.
2 productsNon Return Valve
One-way check valves that prevent backflow and protect pumps, filters and fertigation equipment from reverse pressure.
1 productsThrottle Valve
Precision flow-control valves for balancing pressure and discharge across irrigation zones.
1 productsMain Line
High-pressure PVC pipelines that carry water from the source to the control head and field.
1 productsSub-Main Line
Secondary distribution pipes that feed water from the main line into each irrigated block.
1 productsLaterals
LLDPE drip lateral tubes that run along crop rows and carry emitters to every plant.
1 productsDrippers
Online and inline emitters that deliver a precise, slow trickle directly to the root zone.
1 productsEmitting Pipe
Inline drip tubes with factory-fitted emitters spaced to match your crop geometry.
1 productsValves
Ball, gate, bypass and control valves for safe, controllable operation of the entire irrigation network.
1 productsPVC Fittings & Accessories
Every joint, bend and connector needed to assemble a leak-proof irrigation system.
1 products
